- Flymo
(www.flymo.com/uk)
- Switch Box
- 2003
![](https://freight.cargo.site/t/original/i/69dd1e0feee05bc162bcba3790adc414ebb5101fd8cae9406c6c2b05ffaf709e/Flymo-Sketch.jpg)
Initial Sketches.
Exploring strain relief concepts and locations.
![](https://freight.cargo.site/t/original/i/4d3d2a5af92bc089297484ba5e1736d42ca8525c27b8bf60efff3146b29919e6/Flymo.jpg)
Lawn mower switch box – Re-designed to incorporate a power cord strain relief and new control button. Design had to stay within the existing switch box package and retain the unique Flymo family feel.
![](https://freight.cargo.site/t/original/i/e05dab8b154b81a58e3806fd044763b8fffec026e2522bf432c49411292575d5/Flymo-Render.jpg)

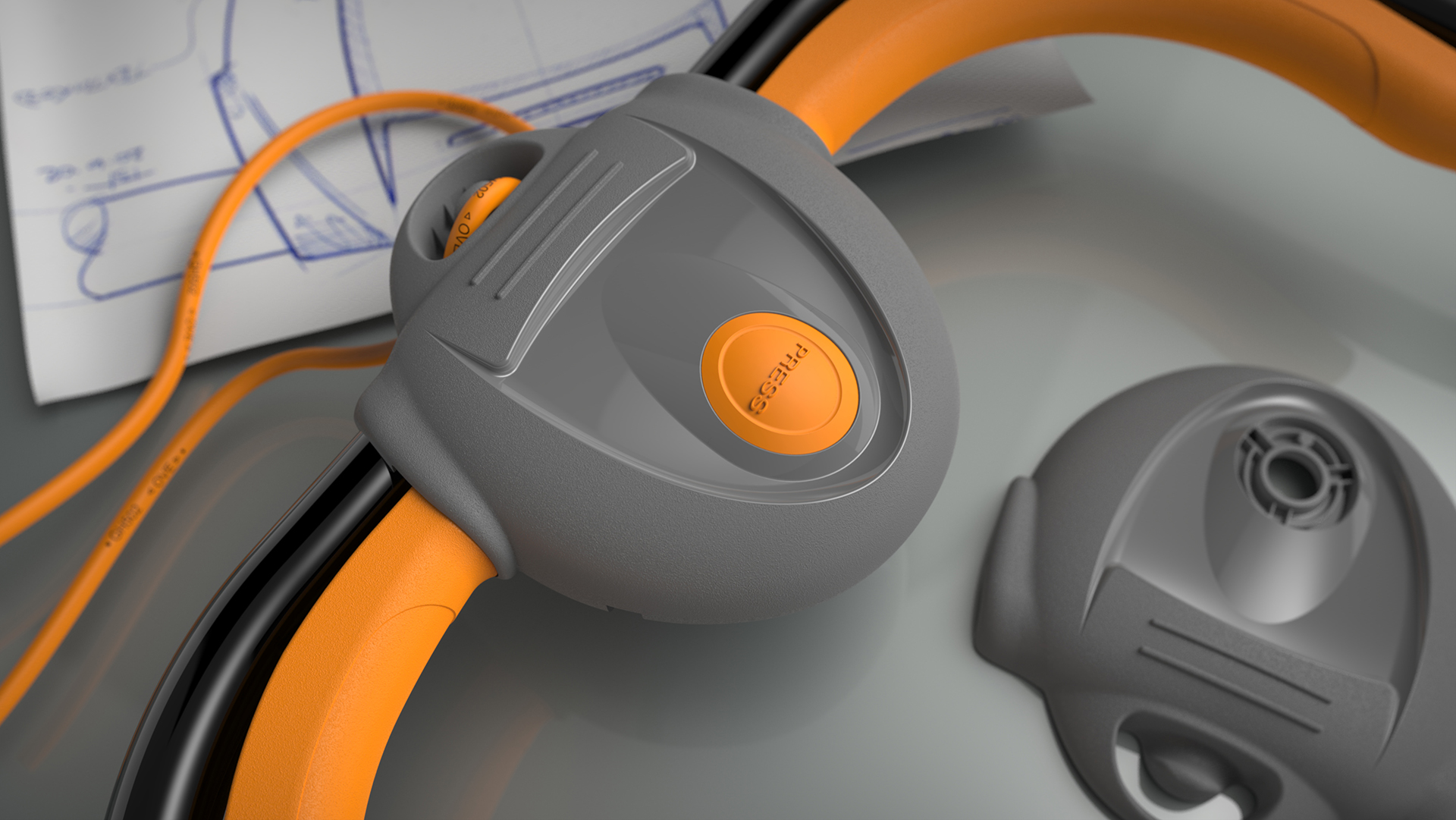

Final concept rendering.
Illustrating both design aesthetic and material finishes (spark finish to main body, gloss to button area).
![](https://freight.cargo.site/t/original/i/41bdeb5d39f2044f3d0d3e3276a887a719731975c7e9837e55ac47f2d7449719/Flymo-Foam-1.jpg)
![](https://freight.cargo.site/t/original/i/0c6de94d392a3eab6373672afcc2b6d1c1fd0b3eb322e9f6d976934b745a6dcf/Flymo-Foam-2.jpg)
![](https://freight.cargo.site/t/original/i/490b3e65d41c848e1a2c31903147c8ea77b344f3e42f310dfd698c53b2b5e96c/Flymo-Foam-3.jpg)
Evaluation Models.
Simple foam models to test and evaluate proposed strain relief.
![](https://freight.cargo.site/t/original/i/34b57e007fb6d3bb2dab96a3b46c64add281ffdf20d83e713ad43fcf80cbc747/Flymo-First-Off-1.jpg)
![](https://freight.cargo.site/t/original/i/cbd2d1542d66f38101af8627471c9c14ba50eefd3d03497610b9b3ef89ab429d/Flymo-First-Off-2.jpg)
![](https://freight.cargo.site/t/original/i/68f008329b2e2b1fb263c5865f09cffcb9350d3ccf0853041d16da4cc8ec72c4/Flymo-First-off-3.jpg)
First-Off Production Parts.
Tooling unfinished, still requires polishing and texture finnishes added (spark finish).
